OPENMARK 5000 MRI System Proposal

About ANKE

Founded in 1986, Shenzhen Anke High-tech Co., Ltd. is one of the first high-tech enterprise of national excellency and the first medical imaging engineering center of Guangdong province and Shenzhen municipality.

ANKE specializes in RD, manufacturing, sales and service of medical equipment, currently including CT, MRI, X-ray radiography systems, dental CT, telemedicine (Anke Image Cloud), minimally invasive surgery and other series. ANKE invented the first MRI system, spiral CT, color doppler ultrasound, PACS, fetal monitor and the first surgical navigation system. All products have proprietary intellectual property rights and are ISO13485 and ISO 9001 certified and approved by CFDA, CE and FDA.

ANKE has set up branches and offices throughout China and worldwide for a complete sales and maintenance & service system. By now, ANKE has a customer base of over 10,000 hospitals. ANKE's after-sales service enjoys a good reputation among the medical or healthcare circles. ANKE keeps a leading position in a user comprehensive satisfaction evaluation organized by the Ministry of Healthcare, which includes manufacturers of foreign brands.

Innovative, pioneering, realistic and credible are the principle of ANKE business operations. Over 30 years since establishment, ANKE has always been committed to making high-tech medical equipment, creating globally advanced technologies, providing products and services of reasonable price and super quality. ANKE enjoys high prestige and has established a good brand image in the medical device industry.

Introduction of OPENMARK 5000

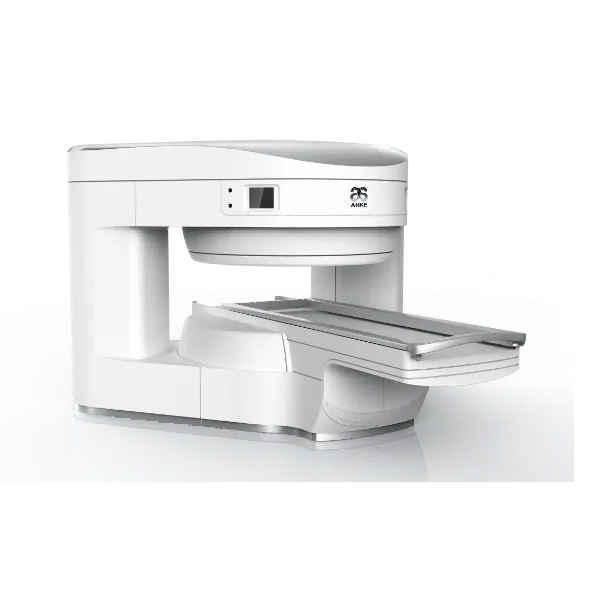

OPENMARK 5000 is a whole-body permanent MRI system newly upgraded and listed by ANKE.

0.51T magnetic field strength, which is a truly mid-field permanent MRI, large horizontal opening angle, integrated wide electric patient table and powerful gradient system, makes OPENMARK 5000 become a truly high-performance permanent MRI.

This system combined with more than 30 years’ experience of research and development of MRI software, scanning sequence, imaging technology, makes the OPENMARK 5000 system highly stable.

With OPENMARK 5000, doctors can obtain high SNR value, high resolution and high contrast clinic images easily, which will provide the most reliable diagnostic basis for clinical application.

Technical advantages

• Large openness magnet, 0.51T truly mid-field;
• Powerful Gradient output, integrated RF-Gradient coil with high linearity and “0” eddy current;
• New technology enhances the scanning speed, provide a fresh impression of permanent MRI;
• Optimized parameter design provides image quality close to superconducting MRI;
• Fully meet your clinical needs, with 20% operating cost of superconducting MRI.

Magnet system

Large openness structure

OPENMARK 5000 adopts the rear asymmetrical dual-pillar design, under the premise of ensuring the stability of the structure, the canning space is maximized, the front opening angle can reach 280°, which will offer a maximum comfort for patients, especially for obese patients, claustrophobic patients, and children.

Unique shimming technology

Homogeneity of the main magnetic field is the basis of MR imaging. A good magnetic field homogeneity helps to realize a wide range of abdominal scanning and off- center joints scanning.

ANKE provides unique shimming technology, which is combined with passive and active shimming during scanning. This can greatly improve the image quality of large FOV scanning and off-center scanning, you can easily to achieve high-quality imaging of whole body.

Intelligent temperature control system

Permanent magnet is very sensitive to temperature draft.

OPENMARK 5000 is equipped with a intelligent temperature control system, to keep the magnet in a constant temperature, which will ensure a high stability of magnetic field.

Magnet specifications

Magnet type	Permanent
Magnetic field strength	0.51T ± 5%
Magnet appearance	Dual-pillar
Weight	21.8T ± 1.5%
Horizontal opening angle	280°
5 Gaussian fringe field	X, Y, Z directions ≤ 2.5m
Shielding methods	Passive Shimming + Active Shimming
Magnetic field homogeneity	≤ 1.6 ppm @ 40cm DSV (VRMS)

Gradient system

General features

Gradient system is the engine of MRI system.

OPENMARK 5000 is equipped with a new type Integrated RF-Gradient coil, this coil is a combination of traditional RF transmitting coil, RF shielding coil and gradient coil.

Combined with self-shielding technology, which will improve the working efficiency and saving your maintenance cost.

Eddy-“0” technology, through the combination of hardware and software, the eddy current is compensated to the maximum extent, ensure excellent imaging quality.

Excellent linearity, easy to achieve a wide range of scanning.

Powerful output

Max. amplitude (single axis)	30mT/m
Max. slew rate (single axis)	100T/m/s
Min. rise time	0.3ms
Gradient amplifier cooling type	Air cooling
Gradient coil cooling type	Air cooling

RF (Radio Frequency) system

General features

• High efficiency RF system, equipped with new and unique technology, reducing electrical noise and increasing signal detection.
• Full 4 channels platform, including 4 channels phased array receiving coils, 4 channels A/D conversion unit and 4 channels full-digital spectrometer.

RF parameters

Type of RF system	Full digital transmitting and receiving
RF amplifier maximum power	6 kW
Receiving channel number	4 channels
Receiving bandwidth	1.25 MHz



RF (Radio Frequency) coils

PA (Phased Array) coils

The phased array coils are designed for high image quality. No-tune high element coils increase SNR and reduce examination times.

Comprehensive Applications

High-definition diffusion imaging

DWI (Diffusion Weighted Imaging) is to show Brownian motion of water molecules by applying diffusion sensitive gradient on the basis of EPI (Echo Plane Imaging) sequence.

In OPENMARK 5000 system, we supply EPI (Echo Planar Imaging) with Single Shot and Multi Shot technology for high-definition diffusion weighted imaging. In one scanning, you can obtain 4 images of DWI: DWI images with high b-value, DWI images with 0 b-value, ADC-map, eADC-map.

In addition, LSDWI (Liner Shot Diffusion Weighted Imaging) can also provide a high b-value DWI images in low filed MRI system.

DWI is a necessary function for the examination cerebral infarction, brain tumor, malignant lesions (body) and bone tumor, etc.

High-resolution angiography imaging

 TOF (Time-of-Flight) 2D/3D is based on the enhancement effect of blood flow, and is mainly used for the examination of cerebral blood vessels, neck blood vessels, and lower limb blood vessels. The newly optimized sequence and parameters can control the MRA scanning time to about 5 minutes or even less in low field MRI, while improving the image resolution.

MTC (Magnetization Transfer Contrast) technology and TONE (Tilted Optimized Non-saturation Excitation) pulse to improved Contrast to Noise Ratio of images.

Fast recovery technology

For the traditional T2WI based on FSE sequence, we always need set a long TR (Time of Repetition) to avoid the introduction of T1 relaxation signals, and get a good T2 weighted image. However, in daily scanning, due to the limitation of scanning time and hardware performance, it is always difficult to get good contrast T2 weighted image.

In the new imaging platform, we have introduced fast recovery technology and optimized the traditional FSE sequence, which can greatly shorten the TR time, while eliminating the T1 relaxation signal, providing better T2-weighted imaging, and the scanning time is also significantly shortened, can provide better image quality in nerves, abdomen and other parts.

K-space data share technology

In traditional MRI scans, the patients are always required to stay still, to avoid image artifacts, but it’s still unavoidable for breathing, heartbeat, pulse, etc., Especially for abdominal scanning, low- field MRI is difficult to obtain an ideal image even if it is scanned in a gated trigger mode due to the long scanning time and difficult patient cooperation.

K-space data share technology is a new technology that can share the K-space data between each slice in a scanning, in this way, the K-space data that needs to be collected will be reduced, so the scan time will be greatly shortened. For example, for a whole liver T1-GRE scanning, total scan time is less than 15s, can be finish in a single breath-holding for most patient, which also provide a good contrast image without any breath artifact.

PROP data filling technology

PROP (Periodically Rotated Overlapping Parallel) data filling technology is another method of MRI data collection and reconstruction, which will reduce the motion artifact of images without information loss, to greatly improve the scan success rate of restless patients.

Advanced Dixon imaging

DIXON (Water and Fat Separation) technology, based on the chemical shift effect, by adjusting different echo times, to obtain T1-weighted image, water image, fat image, in-phase image, and out of-phase images in one scanning. The combined application of the two-point method and the three- point method can guarantee the success rate of scanning each part.

AI technology for MRI imaging

With the development of computer technology, Artificial Intelligence (AI) technology has been more and more widely used in some high-tech fields. Especially in the field of medical imaging, AI technology is also increasingly used in process optimization, image processing, and auxiliary diagnosis, etc. which can greatly improve work efficiency and reduce the workload of medical workers. As one of the top leading high-tech medical imaging manufacturers, ANKE has always been committed to the research on the application of AI technology in MRI.

AI-Auto Localization technology

 AI-Auto Localization technology uses AI to separate the tissues of the vertebral body, then find the corresponding intervertebral disc based on the vertebral body and place the cross- sectional positioning line parallel to the long axis of the intervertebral disc and perpendicular to the sagittal plane of the spine. This can greatly reduce the complexity of the operation, also, it can save time and avoid position and angle errors caused by manual operation.

AI-Image Enhancement

Compact design

Integrated patient table

Integrated patient table, ultra-wide table and suspension design, will ensure the comfort of patients and operators while saving space.  Touched LCD screen and automatic positioning function, will improve your working efficiency.

Integrated cabinet

Newly designed integrated electronic cabinet, integrated with Isolated power module and automatic air-cooling system, will greatly improves the space utilization. One-key ON/OFF switch function further simplifies daily operations.

Compact design will save 30% space of site, and ensure the comfort of patients and operators.

High return on investment

As a open type Permanent MRI system, OPENMARK 5000 can meet 85% of common application needs, in addition, it’s very user friendly to Children and obese patients because of the open structure, A few metal implants are also allowed, because the magnetic field is not very high.

Efficient and stable system without Helium consumption and water cooling system, power consumption and maintenance cost are far lower than Superconducting MRI.

OPENMARK 5000 can fully meet your clinical needs with only 20% operating cost of superconducting MRI.



Installation

Power Requirements

380VAC ± 10%, 50/60 Hz, ±1Hz, Connection value 15 kVA.

Recommended dimension2)

For the Site planning, we provide flexible site solutions contributed to integrated electric cabinet design, which takes less space and environmental requirements. For the recommended site layout, dimension of MRI room is only 25 m2.

Room	Standard Dimension	Limited Dimension
Scanning Room	6.5m × 5.0m × 3.2m	5.6m × 4.5m × 2.9m
Equipment Room	2.0m × 3.0m × 3.2m	2.0m × 3.0m × 2.9m
Operation Room	3.8m × 4.5m × 3.2m	3.0m × 2.0m × 2.5m

1) The final implementation plan depends on the condition of customer’s site, for more information, please refer to the site planning manual.

Warranty

OPENMARK 5000 supplied by ANKE will be, under normal and proper use and care, free from all defects or deficiency in design, material and workmanship for the Warranty Period as specified below:

1) Warranty Period (from acceptance date): 12 months.

2) The warranty shall not extend to:

• Any products that are misused or that have malfunction attributable to negligence or accidents.
• Any products where ANKE’s original serial number tag or product identification markings have been altered or removed.
• Any products repaired by anyone unauthorized by ANKE.

The guarantee covers all the materials, main accessories that will be shipped directly from the factory and we offer the service technically by the Internet of 7 x 24 hours.

Standard configuration (Simple) 3)

1.  Main components and accessories

No.	Descriptions	Quantity
1.1	Main imaging system	1 set
1.2	Magnet system	1 set
1.3	Standard cover	1 set
1.4	Gradient system	1 set
1.5	4-Channel digital spectrometer system	1 set
1.6	RF transmitting system	1 set
1.7	4-Channel RF receiving system	1 set
1.8	Patient table and control system	1 set
1.9	Patient communication system	1 set
1.10	Physiological gating system	1 set
1.11	Console system	1 set
1.12	Console table and chair	1 set
1.13	Electronic cabinet (With standard PDU inside)	1 set
1.14	1KVA UPS (For console system only)	1 set
1.15	Standard RF shielding cage	1 set
1.16	Accessories	1 set
1.17	Standard software package	1 set

1.  Standard PA (Phased Array) coils

No.	Descriptions	Quantity
2.1	Head coil	1 set
2.2	Neck coil	1 set
2.3	Body coil - 20” (Large)	1 set
2.4	Body coil - 17” (Medium)	1 set
2.5	Knee coil	1 set
2.6	Shoulder coil	1 set
2.7	Coil accessories	1 set
